Product Details:
|
|
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | LYLN |
| Certification: | CE, SASO, SABER |
| Model Number: | PLM-02, PLM-03, PLM-04, PLM-05. |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 unit |
| Packaging Details: | carton + crate/pallet |
| Delivery Time: | 7 days |
| Payment Terms: | T/T, L/C, D/P, Western Union, MoneyGram |
| Supply Ability: | 4000 units/month |
|
Detail Information |
|||
| Material: | Brushed Aluminum + Carbon Steel | Color: | Black, Silver, Or Customizable. |
|---|---|---|---|
| Power Input: | 100~240V | Signal Input: | HDMI & VGA |
| Thickness Of Top Plate: | 1.8mm | Monitor Suitable With: | All Brands |
| Screen Tilt Angle: | 15° | Control Mode: | Remote, Button Panel, 3rd Control System/PC |
| Compatible With: | AMX, Crestron, Extron, Etc. | Communication Protocol: | RS232/485 |
| Max. Load: | 8.5 KG | Monitor Size: | 24" |
| High Light: | hidden monitor lift,pop up monitor lift |
||
Product Description

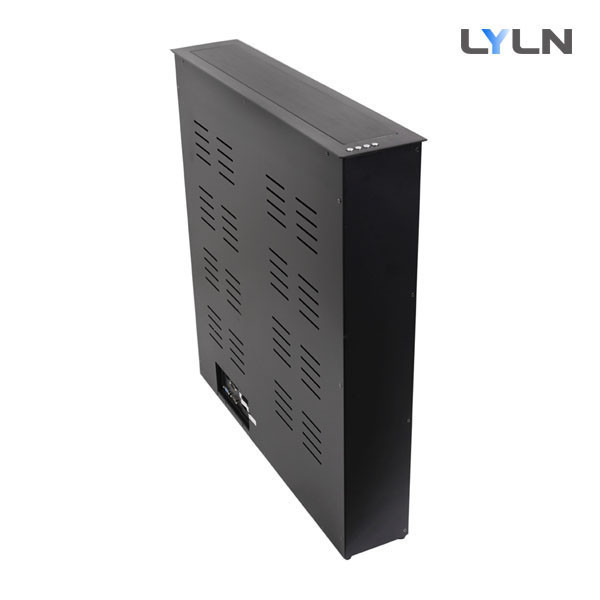

Motorized Monitor Lift System
| Model No. | PLM-02 | PLM-03 | PLM-04 | PLM-05 |
| For Monitor Size | 15" ~17" | 19" | 21"~22" | 24" |
| Monitor Tilt Angle | 15° in default, 0 ~ 60° is customizable. | |||
| Application |
video conference room, boardroom, classroom, training room, bank office system, court, paperless conference system, meeting room with video wall, voting system, etc. |
|||
Black and Silver Top Panel
With Anti-pinch Protection System
• designed to hide monitor into conference table automatically after use.
• it comes without a monitor.
• fit for most monitors/all-in-one monitors size at 15", 17", 19", 21", 22", 24".
• top panel is made of brushed aluminium in silver or black.
• monitor cover opens inwards and hide in the lift box automatically before monitor starts to lift up.
• monitor tilt angle: 15°.
• with anti-pinch system, monitor covers will rebound and stop once it clamps any object, like finger, pencil, etc.
• compatible with most integrated control systems like AMX, crestron, extron, etc.
• communication via RS485/232 protocol.
• monitor power on/off automatically.
• with RF wireless remote controller and manual control board.
• power consumption: 15 watts.
• max. loading capacity: 8.5 KGs
• with VESA brackets for fixing lcd monitors onto the lifts.
• one remote controller can control more lifts at the same time.
• easy installation and easy operation.
