Product Details:
|
|
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | LYLN |
| Certification: | CE, SASO, SABER |
| Model Number: | PLM-UL15-M, PLM-UL17-M, PLM-UL19-M, PLM-UL22-M, PLM-UL24-M, |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 unit |
| Packaging Details: | carton + crate/pallet |
| Delivery Time: | 7~15 days |
| Payment Terms: | L/C, T/T, Western Union, D/P |
| Supply Ability: | 2000 units/month |
|
Detail Information |
|||
| Material: | Brushed Aluminum | Color: | Black, Silver, Or Customizable. |
|---|---|---|---|
| Screen Size: | 15.6", 17.3", 18.4", 21.5", 23.6" | Resolution Ratio: | 1920 X 1080(FHD) |
| Display Format: | 16:9 | Signal Input: | HDMI & VGA |
| Power Input: | 110~240V | Monitor Tilt Angle: | 15° |
| Communication Protocol: | RS232/485 | Compatible With: | AMX, Crestron, Extron, Etc. |
| Highlight: | Motorized Retractable Monitor,Retractable Monitor With Conference Discussion Unit |
||
Product Description

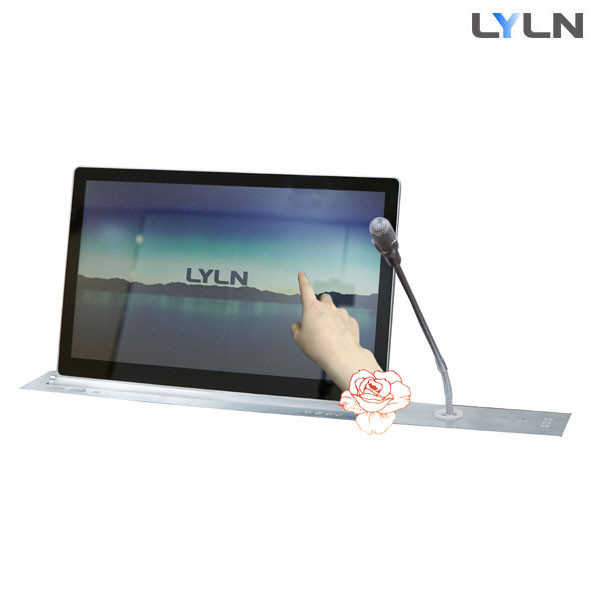

Motorized Retractable Monitor Integrating With Conference Discussion Unit
Motorized Retractable Monitor
Integrating with conference system
| Model No. | Screen Size | Resolution Ratio | Size of Top Plate (mm) |
Net Weight | Certification |
| PLM-UL15-M | 15.6" | 1920 x 1080 | 615 x 78 x 1.8 | 13.50 KG | CE SASO SABER |
| PLM-UL17-M | 17.3" | 1920 x 1080 | 655 x 78 x 1.8 | 14.60 KG | |
| PLM-UL19-M | 18.4" | 1920 x 1080 | 680 x 78 x 1.8 | 15.70 KG | |
| PLM-UL22-M | 21.5" | 1920 x 1080 | 765 x 78 x 1.8 | 17.60 KG | |
| PLM-UL24-M | 23.6" | 1920 x 1080 | 815 x 78 x 1.8 |
20.70 KG |
• this series is ultrathin monitor lift integrating with microphone lift.
• monitor and microphone can be operated to lift up/down synchronously, as well as separately.
• with a FHD screen, screen sizes: 15.6", 17.3", 18.4", 21.5", 23.6".
• monitor tilt angle: 15°.
• monitor and mic covers open inwards and hide in the lift box automatically before monitor & mic start to lift up.
• can integrate with XLR microphone and conference system gooseneck microphones
like Bosch, Shure, Audio-Technica, Televic, etc.
• customers' provided microphones are welcome, and pre-installed at our factory.
• with a gooseneck microphone straightening device, after use, no need to straighten microphones manually.
• with microphone ON/OFF button.
• one remote can control all units within 30 meters.
• touch screen is available.
Motorized Retractable Monitors are a type of monitor that are designed to be raised and lowered by a motorized lift system. Here are some of the common features of Motorized Retractable Monitors:
![]()
Retractable Monitor integrating with conference system:
monitors and microphones are above the desktop.
|
Retractable Monitor integrating with conference system: Only monitors are above the desktop, microphones retract into the desk.
Retractable Monitor integrating with conference system: Only microphones are above the desktop, monitors retract into the desk.
Retractable Monitor integrating with conference system: Monitors and microphones retract into the desk.
|
More Options:
| BOSCH |
SHURE |
AUDIO TECHNICA |
| With dual microphones | With fixed microphone | CUSTOMIZED |
Integration with different brands of microphones, welcome to advise us more brands which you want to use.
