Product Description

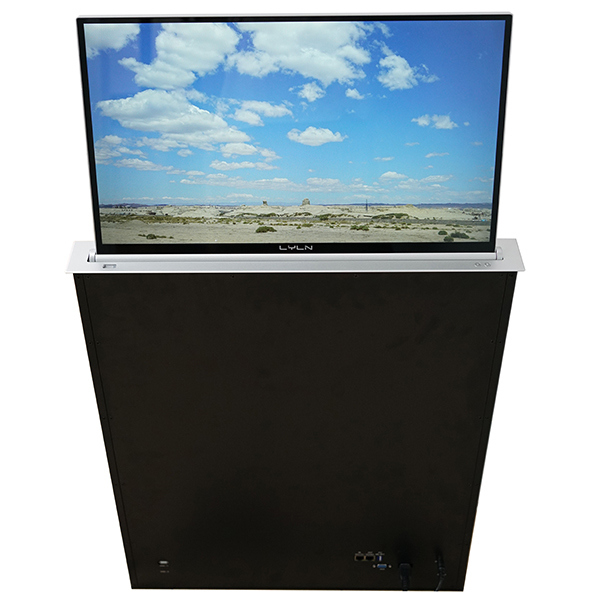

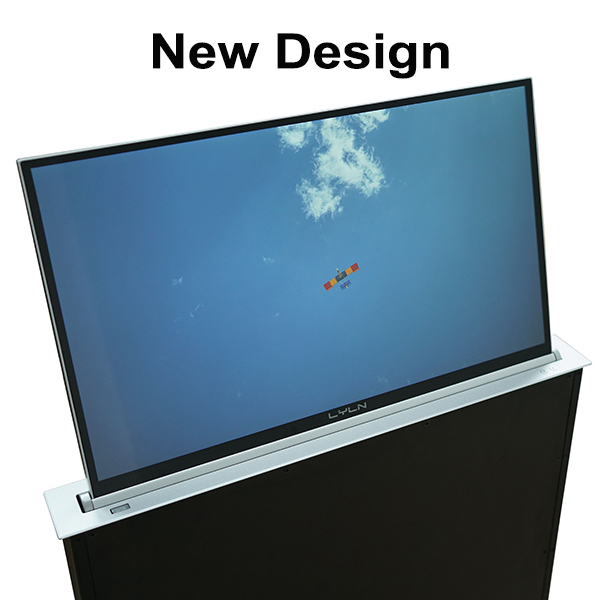

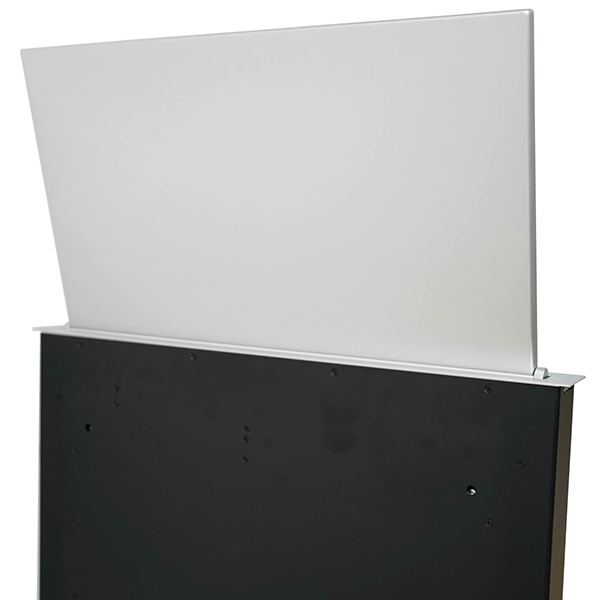

Motorized Retractable Monitor
| Model No. |
PLM-UL13 |
PLM-UL15 |
PLM-UL17 |
PLM-UL19 |
PLM-UL22 |
PLM-UL24 |
| Screen Size |
13.3" |
15.6" |
17.3" |
18.5" |
21.5" |
23.8" |
| Resolution Ratio |
1920 x 1080 / 4K |
| Monitor Tilt Angle |
15° as default, 0 ~ 30° is customizable. |
| Power Input |
Adapter(DC 12V/4A) |
• Each system comes with a built - in high - quality Full - HD (FHD) screen panel.
• The screen features a motorized lifting mechanism, enabling smooth up - and - down movement.
• An anti - pinch protection system is incorporated to ensure user safety during screen operation.
• It operates on a low - voltage system, with a DC 12V/5A power input.
• Boasting an ultra - thin body design, it not only looks sleek but also saves space.
• The screen tilt angle can be adjusted both motorizedly and manually.
• The system is equipped with an automatic screen power management function.
• The casings are fully made of aluminum, offering durability and an elegant appearance.
• There is a separate USB port on the top plate for 3rd device to connect.
• It supports third - party device control.
• Two signal input methods are switchable.
• It is compatible with most popular integrated control systems such as Crestron, Extron, and QSC, ensuring easy integration into existing setups.
• Communication is achieved via RS485/232 protocol.
Details:
Thinner Screen Thickness, some models are 6mm only thick.
Narrow Bezel Screen(left)
Simple Panel Design
* Sandblasted Silver * Fine Bevel Treatment. * Button Panel.
Anti-pinch Protection System
The downward - opening door of the compartment will automatically close after the monitor is
lowered into the box. During the closing process, if any foreign object is caught, the door will
automatically bounce open and stop operating.
Powered by an adapter(12V/4A) & Connectors at box side
DC power port x 1
HDMI input x 2
RJ45 x 2
USB x 1 (As default)
Optimized Dimensions:
